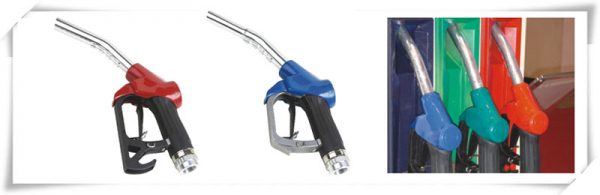

Automatic Fuel Gun ZYQ Series

JAYO provides ZYQ series automatic refueling guns for fuel dispensers designed in the style ideal for today’s users. ZYQ series fueling gun are compact, lightweight, easy to operate and easy to use. At the same time, this series fueling gun are strong, durable and reliable in service.

Materials of Fuel Gun ZYQ series

Body: Aluminum
Seals: Buna-N, Won
Main stem seals: Viton Cased Oil Seal
Main stem: Stainless steel

Features of Fuel Gun ZYQ series

◈Compound main valve and return flow analysis: the structure is more compact, the appearance is beautiful and compact, the pressure loss is reduced, and the flow rate is improved.
◈Accurate flow control: Users can fill up the fuel tank according to the exact amount of oil they need, and it is very easy to stop the fuel supply accurately.
◈Interchangeable 360-degree swivel joint – to prevent the hose from tangling.
◈Easy to full-service normally open gear: One-handed control, convenient and quick to set the flow rate for the customer.
◈Sawtooth type oil outlet pipe: Make the refueling gun stuck in the fuel tank mouth without having to hold by hand, which increases your work efficiency.
◈Attitude lock design – when the oil outlet pipe is inclined upwards more than the horizontal position, the oil gun will be automatically closed to prevent leakage and accidents.
◈Integral insulated holster – protects the refueling gun and vehicle, and isolates the user’s hands from damage.
◈Color selection – see color chart inside page.
◈Optional splash guard.
◈100% factory test.

Technical Paramater of Fuel Gun ZYQ series

Model Inlet Size Outlet
ZYQ-13A series NPT3/4” / BSP3/4”
NPT1” / BSP1”
0-70 L/min
0-45 L/min
ZYQ-25A series NPT1” external thread
NPT1” internal thread
BSPT1” external thread
BSPT1” internal thread
BSPP1” external thread
BSPP1” internal thread
1-3/16” 0-120 L/m 0.18㎫

Please kindly contact us with your fueling requirement, we can provide with detailed fuel nozzle information.

Package Info of Fuel Gun ZYQ series

Model Net
Dimension Package
ZYQ-13A 1.25kg/pc 1.5kg/pc 55*34*42.5 cm3
37.5*34*43 cm3
 ZYQ-13AP 1.25kg/pc 1.5kg/pc 55*34*42.5 cm3
37.5*34*43 cm3
ZYQ-25A 1.6kg/pc 2kg/pc 55*34*32.2 cm3 15pcs/case
