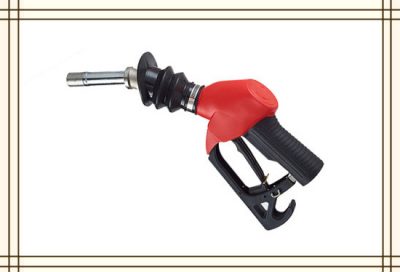

Nozzle for Oil & Gas Recovery
Oil and gas recovery at gas stations can greatly reduce some pollution problems caused by emissions, and can directly protect air hygiene. At present, the technology of oil and gas recovery is still under continuous research, and the oil and gas recovery gun is also being greatly improved. Many people are choosing to use the oil and gas recovery gun for oil and gas recovery. In the gas station, the oil and gas recovery refueling gun can recover the oil and gas generated during refueling into the underground oil tank, and all this requires the use of the oil and gas recovery nozzle. Therefore, the use of oil and gas recovery nozzles can greatly reduce the incidence of accidents, and is also environmentally friendly and energy-saving. Environmental protection and safety are the ones that people attach great importance to, especially in the aspect of recycling, the government has always paid strong attention. At the same time, due to policy support, the technology of oil and gas recovery is getting better and better. The use of oil and gas recovery nozzle will be an inevitable choice, and this also reflects the important role of nozzle for oil and gas recovery.
The oil& gas recovery nozzle is suitable for all electronic oil & gas control dispensers. As the terminal equipment of the two-stage oil and gas recovery, the self-sealing oil and gas recovery refueling gun, the self-sealing principle relies on the air suction of the liquid flow. When the oil submerges the air intake nozzle, the upper cavity of the switch membrane forms a negative pressure, and the diaphragm is sucked and moved upwards. And make the self-sealing rod drive the switch handle, so that the blocking plate is separated from the limit plate, and the main valve is automatically closed to prevent the oil from overflowing. The principle of the two-stage oil and gas recovery is that first, when refueling the car, the oil and gas in the car’s fuel tank and the oil and gas produced by the volatilization of the high-speed gasoline during the refueling process are collected by the refueling gun of the oil and gas recovery station. Then, the oil and gas collected by the oil and gas recovery gun is transported to the oil and gas separation valve while transporting gasoline through the reverse coaxial hose. The ratio of the volume of oil and gas collected in the underground oil storage tank to the volume of gasoline pumped by the dispenser can be automatically adjusted to the standard ratio through the gas-liquid proportional valve. When refueling , the oil and gas recovery vacuum pump installed on the gas path starts at the same time to provide power for the collection and transportation of oil and gas.
Features of Oil Gas Recovery Nozzle
◈Small and modular structure
◈Internal parts are interchangeable.
◈Suitable for gasoline, ethanol, diesel, biodiesel, etc., but not suitable for viscous oil products.
◈With automatic shut-off function, it can ensure that the nozzle for oil & gas recovery is automatically closed when the container is full, preventing the oil and gas from overflowing.
Technical Parameter of Oil Gas Recovery Nozzle
|Dimension||Net weight||Gross weight||Package|
