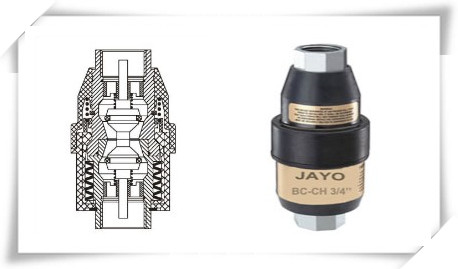

BC-CH Series Breakaway Coupling

JAYO BC-CH breakaway coupling is a reusable breakaway valve on the conventional fuel dispenser market. It is designed to be installed on the fuel delivery hose, and when subjected to a certain amount of tension, the pull-off valve will separate. Both valves will automatically seat, shutting off fuel flow, so as to limit fuel leakage and protect fueling equipment. When reconnecting the disconnected section, the JAYO BC-CH will seal tightly on the seal before the main stem opens the valve. Under normal operation, the JAYO BC-CH must be installed on a high-level hose of no less than 9″ straight length, and for a low-level hose, the JAYO BC-CH must be installed with its breakaway cable.

Features of BC-CH Series Breakaway Coupling

◈For JAYO BC-CH 3/4’’, it will separate when tensile force is among the range of 250lb±5%; while for JAYO BC-CH 1’’, it will separate when tensile force is among the range of 300lb±5%.
◈Unique double valve design can realize the pressure reducing.
◈Flow rate: 0-60L/min
◈Working pressure: 0.18MPa
◈The joint is protected by plastic coat.
◈Easy to reconnect – Only needs to twist the separation part slightly, when hearing ticking sound, it means reconnecting is done. And the reconnecting pressure is about 15lb.
◈Hydraulic pressure resistance – with the unique shape design, JAYO BC-CH Series Breakaway Coupling can bear the effect of normal hydraulic pressure shock.
◈Under the condition of humid or dry hose, this breakaway valve also maybe reconnect.
◈100% factroy inspection.

Technical Parameter of BC-CH Series Breakaway Coupling

Model Size Material Gross
weight
Dimension
(cm)
BC-CH 3/4’’ BSP3/4’’
/
NPT 3/4’’
Body: die-casting zinc
Seal: fluororubber
Spring: stainless steel
Main valve: POM
Coat: PA66
18.5kg/50pcs 31*30*26
/50pcs

Note:

JAYO suggests customers change new BC-CH breakaway coupling when tensile force is below 180lb after mutiple reconnections.
