Elbow Pipe for Tank Truck Parts

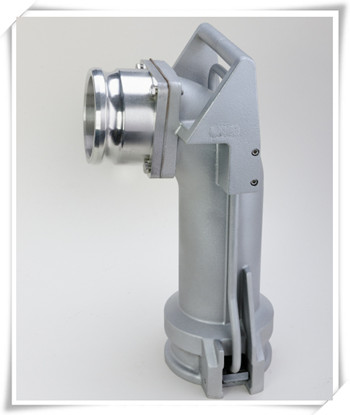

SYWG-V Elbow Pipe for Oil & Gas Delivery
As tank truck parts, SYWG-V type elbow pipe is used to connect the oil and gas recovery hose and the check valve on the oil and gas recovery riser of the underground oil tank for oil and gas delivery. When the oil tanker unloads oil at the gas station, clamp the gas pipeline to the check valve, open the valve of the check valve to recover the oil and gas, and unload the pipe after the oil is unloaded, and the check valve automatically closes the oil and gas pipeline. Stop vapour recovery. The joint of the gas pipe elbow is designed to be detachable, and it can be installed to replace joints of different specifications. It adapts to different specifications of air hoses.
Features of SYWG-V Elbow Pipe
◈Aluminum alloy material, light weight
◈Simple and simple shape design
◈Comes with 4 bolt flanges for easy replacement
◈Protective base cover
Technical Parameter of SYWG-V Elbow Pipe
|Model||Connect||Net weight||Gross weight||Dimension|

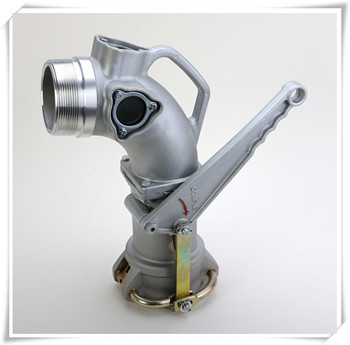

SYWG-01 Elbow Pipe
SYWG-01 Oil Pipe Elbow is used to connect the oil pipe and the anti-spill container for oil unloading when the tank truck unloads oil from the underground tank at the gas station. It is clamped on the sleeve of the anti-overflow container, and the male end of the concave-convex groove is connected with the connector of the oil pipeline.
◈Aluminum alloy material, light weight.
◈It is suitable for sealing the top face of 4”, and the material of the male end concave and convex face grooves are all copper sleeves
◈Unique concave cam turn wrench for easy connection and removal.
◈The operator can check whether the liquid is flowing through the sight glass.
|Model||Connect||Application||Net weight||Gross weight||Dimension|
|SYWG-O1-801||4” Male cam&groove||01 Pipe Adapter||5.8kg/pc||6.5kg/pc||54*33*24cm3|
|SYWG-O1-802||NPT4” Male Thread||01 Pipe Adapter||5.8kg/pc||6.5kg/pc||54*33*24cm3|
|SYWG-O1-803||BSPT4”Male Thread||01 Pipe Adapter||5.8kg/pc||6.5kg/pc||54*33*24cm3|
